EVERYONE ENJOYS A WARM POOL!
POOL HEATING PERFECTED
SWIM IN WINTER
• A SunX Heat Pump can heat your pool in cooler temperatures.
GOOD ENVIRONMENTAL CHOICE
• Heat pumps utilize available energy in the atmosphere, and transfer heat to your pool water, at a fraction of the price of gas heaters.
SUPERIOR PERFORMANCE
• Super-Sized evaporator coils*
Our special fin design collects
more heat as the outside temperature starts to drop.
• 320° Full wrap coil
• Hot Gas Defrost allows the heater to operate in the colder winter months.
QUIET
• Designed with your neighbor in mind. Ultra quiet fan and compressor used for ultra-quiet operation.
* Largest evaporator in its class (over 20 sq. ft. wrap around coil)
COST OF OPERATION
COST PER MILLION BTUS OF HEAT
SunX
$5.60
Natural Gas
$27.50
Electrical Resistance
$38.10
Propane
$40.76
*Chart based on $3.00 per gallon LP Gas, $2.20 per therm. of Natural Gas, 13¢ per kilowatt and a heat pump with C.O.P of 6.8

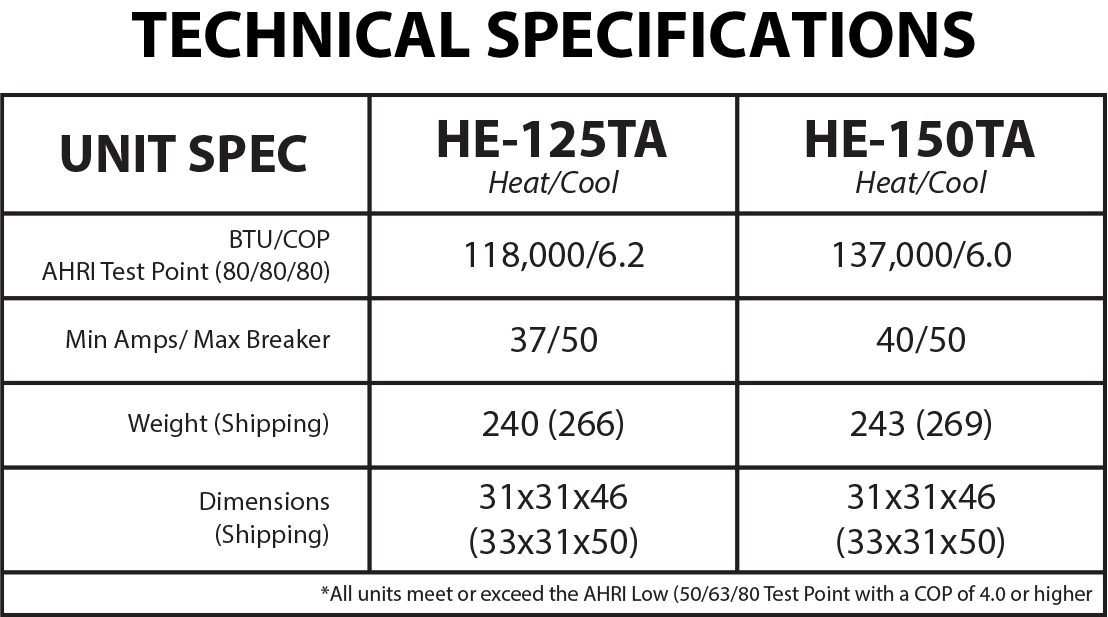

TECHNICAL SPECIFICATIONS
| UNIT SPEC | HE-125TA Heat/Cool |
HE-150TA Heat/Cool |
|---|---|---|
| BTU/COP AHRI Test Point (80/80/80) |
118,000/6.2 | 137,000/6.0 |
| Min Amps/ Max Breaker | 37/50 | 40/50 |
| Weight (Shipping) | 240 (266) | 243 (269) |
| BTU/COP AHRI Test Point (80/80/80) |
31 x 31 x 46 (33 x 31 x 50) |
31 x 31 x 46 (33 x 31 x 50) |
*All units meet or exceed the AHRI Low (50/60/80) Test Point with a COP of 4.0 or higher
